Quick Details

  • Condition: New
  • Type: Suction Filter, HYL series oil filter element
  • Structure: Cartridge
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Wanhe Xin
  • Model Number: HYL series
  • Weight: 0.3kg
  • Dimension(L*W*H): Different
  • Certification: ISO,IQNet
  • Warranty: One year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Filtration media: Oil
  • Filtration accuracy: 5μm~280μm
  • Operation temperature: 110℃
  • Operation pressure: 31.5MPa
  • Flow: 4L/min
  • Length: 20-60"
  • Using life: More than 20000 hours
  • Supplier qualification: No.1 for this part
  • Advantage: Most professional team service for you regarding this product

Packaging & Delivery

Packaging Details According to your requirement.
Delivery Time Within one week.

Specifications

Oil filter element
1,Extremely long using life.
2,Used for coal mine.
3.Compact structure,easy to use.

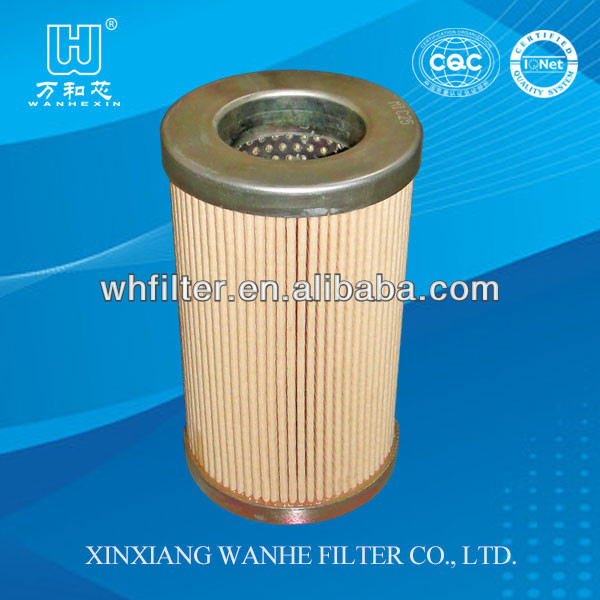

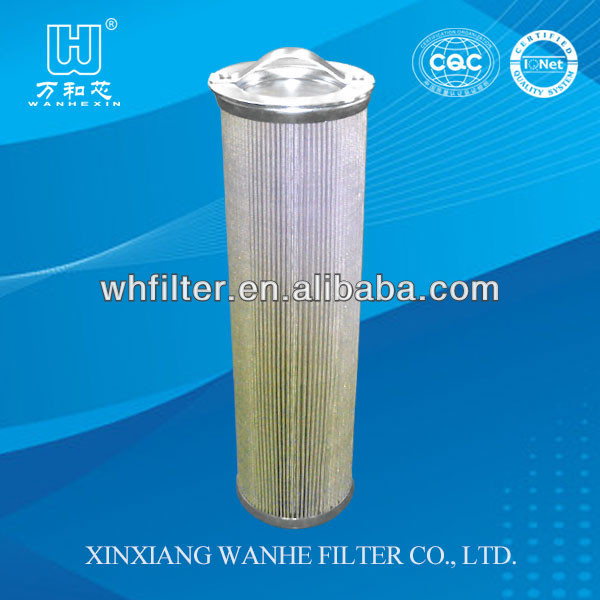

Henan Xinxiang HYL series oil filter element

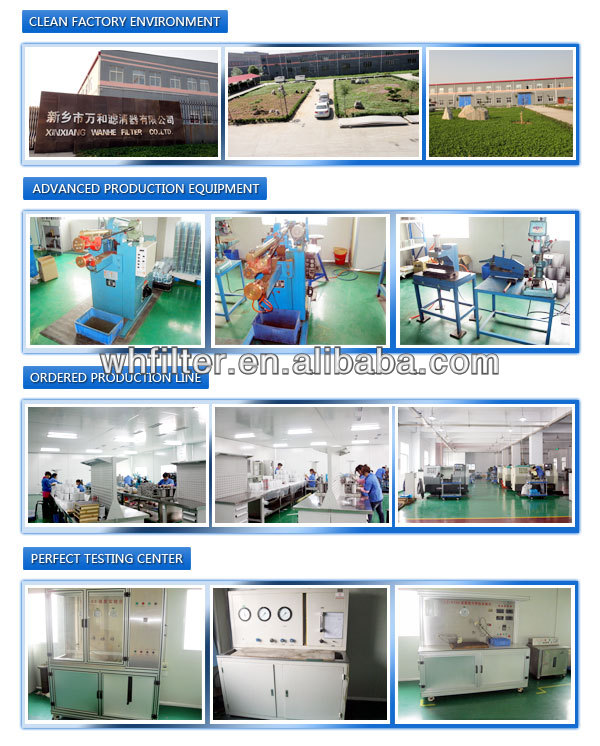

   Xinxiang Wanhe Filter Co., Ltd. is located in China Xinxiang filter Venture Industrial Park, is a professionally engaged in various industrial fluids filters and associated products’ development, sales, production and technical services integrated enterprise. Through advanced filtering technology, complete system manufacturing equipment, high-quality R & D and management team, provide various and reliable types of filtration systems components and devices for mine equipment, refrigeration machinery, petrochemical, metallurgical, power electronics, food and medical, aerospace and other industries.



   Our ompany has nearly 6,000 square meters of modern plant, we use clean corporate image, rigorous scientific management methods, the strength of design and production capabilities, face with our customers.


   The company's trademark "Wanhe Xin" has become a well-known brand, and become the first brand in the mining equipment, refrigeration machinery filters and related products field.


   Our company established a complete quality management system, has passed ISO9001 international quality management system certification, "full pursuit of excellence in quality, continuous improvement, customer satisfaction," is our thoughts to customers, customers trust us very much.



The function of the oil filter element:

As a component of the internal combustion compressor,condenser and evaporator, It plays a very important role in the cooling system. During the process, it can filter out metal debris mixed with oil, toner and oil gradually produce gum and other impurities. Oil filter ensures the normal operation of cooling, the service life of the compressor has been greatly improved, and can prolong the service life of the other parts.



TEST STANDARD



1,Our filter elements are tested according to ISO 2943.
2,Compatibility with hydraulic fluids ISO 3968.
3,Flow characteristics ISO/DIS 3724.
4,Flow fatigue characteristics ISO/DIS 4572.
5,Filter performance test (Multi-pass test) ISO 2942.
6,Proof of integrity and quality (Bubble point test) ISO 3723.
7,Verification of the end cap stress ISO 2941.
8,Collapse / burst pressure verification
.



Model          Work pressureFlowPrecisionSuitable Model

HYL-713/W

HYL-715/W

1.2Mpa200L/Min280μmLG16 series refrigeration unit

HYL-533/W

HYL-537/W

1.2Mpa80L/Min 180μm Pipe system in the refrigeration unit
HYL-16/W 1.2Mpa 80L/Min 180μm JZKA16 series refrigeration unit
HYL-529/W1.2Mpa170L/Min 120μm LG20 series refrigeration unit
HYL-530A/W1.2Mpa120L/Min140μm LG16 series refrigeration unit
HYL-560A/W 1.2Mpa 230L/Min 140μm LG25 series refrigeration unit
All the oil filters above should install before the oil pump which is connected with the oil condenser by the pipe.
HYL-530B/W             1.2Mpa                  100L/Min90μm              LG16 series refrigeration unit

HYL-3004B/X

HYL-3004C/X

1.2Mpa336L/Min160μm

JZKA25, JZKA31.5

refrigeration unit

HYL-3566/P1.2Mpa250L/Min10μmVLG(A/F)163/193/234/268 series refrigeration unit
HYL-561/W1.2Mpa230L/Min90μmLG25 series refrigeration unit
HYL-3292/P1.2Mpa110L/Min20μmLG31.5 Í series refrigeration unit
HYL-3296/P1.2Mpa100L/Min20μmLG31.5 series refrigeration unit
All the oil filters above should install after the oil pump which is connected with the oil condenser by the pipe,filter out the metal powder and the small pellet,avoid the wear of the bearing rotor,extend the using span.

HYL-3311X/W

HYL-3311X/W

1.2Mpa         180L/Min50μm LG12,16,25,32series refrigeration unit.
HYL-3246B/W  1.2Mpa10L/Min  5μm Oil pipe filter in the refrigeration system.
HYL-3510/W1.2Mpa  12-30L/Min  50μm Half seal screw refrigeration unit.
HYL-3480W3.1Mpa  400L/Min  50μmPipe system for refrigerating compressor.
HYL-3289X/W1Mpa  50L/Min  90μm



Pipe system for refrigerating compressor.

HYL-3415/P25Mpa  40L/Min  20μm Pipe system for refrigerating compressor.
HYL-3371/Q 0.8Mpa  80L/Min  5μmCentrifugal refigerating compressor
Used in the pipe system for refrigerating compressor,filter out impurity,extend the using span.
